Alu Side Drain

10,00

Information and properties

  • Extruded aluminum profile design as a single unit with continuous 10x25mm lengthwise inlet slots.
  • The aluminum profile is provided with a ‘complete’ 15 μm anodised layer which makes the profile durable and corrosion-resistant.
  • Application: outdoor use for garage doors, terraces, driveways and around ponds or swimming pools.
  • Suitable for tiles, paving stones must be shortened.
  • The standard pre-mounted ‘outliner’ ensures perfect alignment and a quick, waterproof assembly.
  • Custom solutions available in both the visible design as well as the length.

DOWNLOAD TECHNICAL DATA SHEET

SKU: ASD001 Category:

Description

Product details
Alu Side Drain 40 73
Type Length (mm) Weight (kg) Weight (kg)
ASD-500 500 1.607 2.060
ASD-1000 1000 3.125 4.120
ASD-2500 2500 8.037 10.300
ASD-5000 5000 16.075 20.600

INSPECTION COVERS

Standard 40 73
Type Length (mm) Weight (kg) Weight (kg)
ASDI 250 1.400 1.920
Horizontal discharge 40 73
Type Length (mm) Weight (kg) Weight (kg)
ASDIHU 250 1.415 1.920
Vertical discharge 40 73
Type Length (mm) Weight (kg) Weight (kg)
ASDIVU 250 1.415 1.920

Information and properties

  • Extruded aluminum standard inspection cover with continuous 10x25mm lengthwise inlet slots. This ensures no visual interruption.
  • The inspection cover is provided with a ‘complete’ 15 μm anodised coating which makes the profile durable and orrosion-resistant.
  • Application: outdoor use for balconies, garage doors, patios, etc.
  • Suitable for tiles. When using paving stones, the stones must be shortened
  • Accessories: set of lifting keys
  • Horizontal + vertical: easy cleaning of connection for the water discharge is also provided.

CORNERS

Internal corner 40 73
Type Length in L (mm) Install. height (mm) Weight (kg) Weight (kg)
ASDINW 500/500 130 3.125 4.120
External corner 40 73
Type Length in L (mm) Install. height (mm) Weight (kg) Weight (kg)
ASDUNW 500/500 130 3.125 4.120

Information and properties

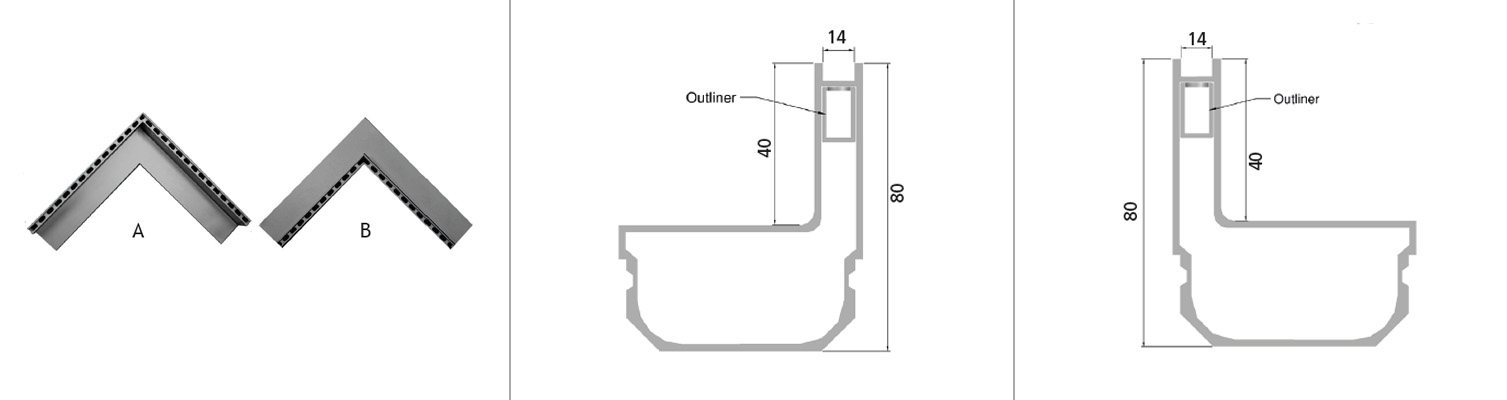

  • Extruded aluminum internal (A) and external corner (B) connection with continuous 10x25mm lengthwise inlet slots. This ensures no visual interruption.
  • The inspection cover is provided with a ‘complete’ 15 μm anodised coating which makes the profile durable and corrosion-resistant.
  • Application: outdoor use for balconies, garage doors, patios, etc. In locations where an internal corner connection is applicable.
  • Suitable for tiles. When using paving stones, the stones must be shortened.

END PIECES

End pieces 40 73
Type Weight (kg) Weight (kg)
ASDEL 0.125 1.415
ASDER 0.125 1.415
ASDEL-50 0.140 1.415
ASDER-50 0.110 1.415

Information and properties

  • Aluminum closed end pieces designed to provide the Side-Drain with a waterproof seal on the right and left sides.
  • The end pieces are finished with a ‘complete’ 15 μm anodised coating which makes the product durable and corrosion-resistant.
  • Application: easy to assemble to the Side-Drain and on all Side-Drain type inspection covers.

CONNECTORS

Connectors 40 73
Type Weight (kg) Weight (kg)
ASDVS 0.115 0.115

Information and properties

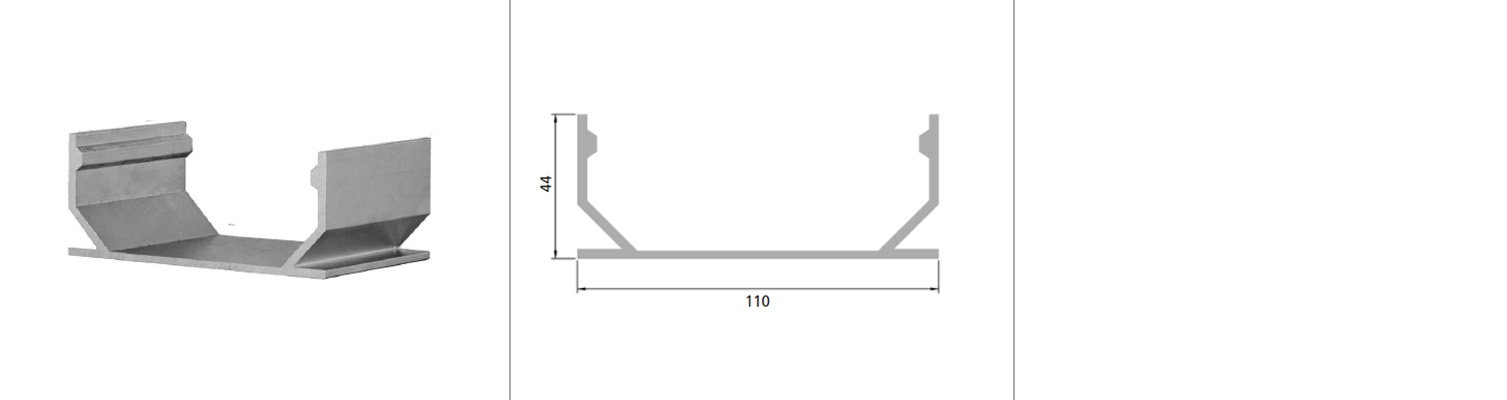

  • The Side-Drain comes standard with the required connectors. However, extra connectors are sometimes desired. We offer the possibility to purchase these separately.
  • The connectors are finished with a ‘complete’ 15 μm anodised coating which makes the product durable and corrosion-resistant.
  • Application: easy to assemble to the Side-Drain and on all Side-Drain type inspection covers.
